Data links for Small Unmanned
Aerial Vehicle Systems

Data links

Flight safety

Dual channels

Control and command data link and payload data link
for small unmanned aerial vehicle operation

▪Tele-command and GNSS augmentation data through the uplink and vehicle status, telemetry and two channels of
    video through the downlink
▪Considering flight safety, tele-commands and vehicle status are simultaneously transmitted through dual channels
    consisting of a primary link and a secondary link

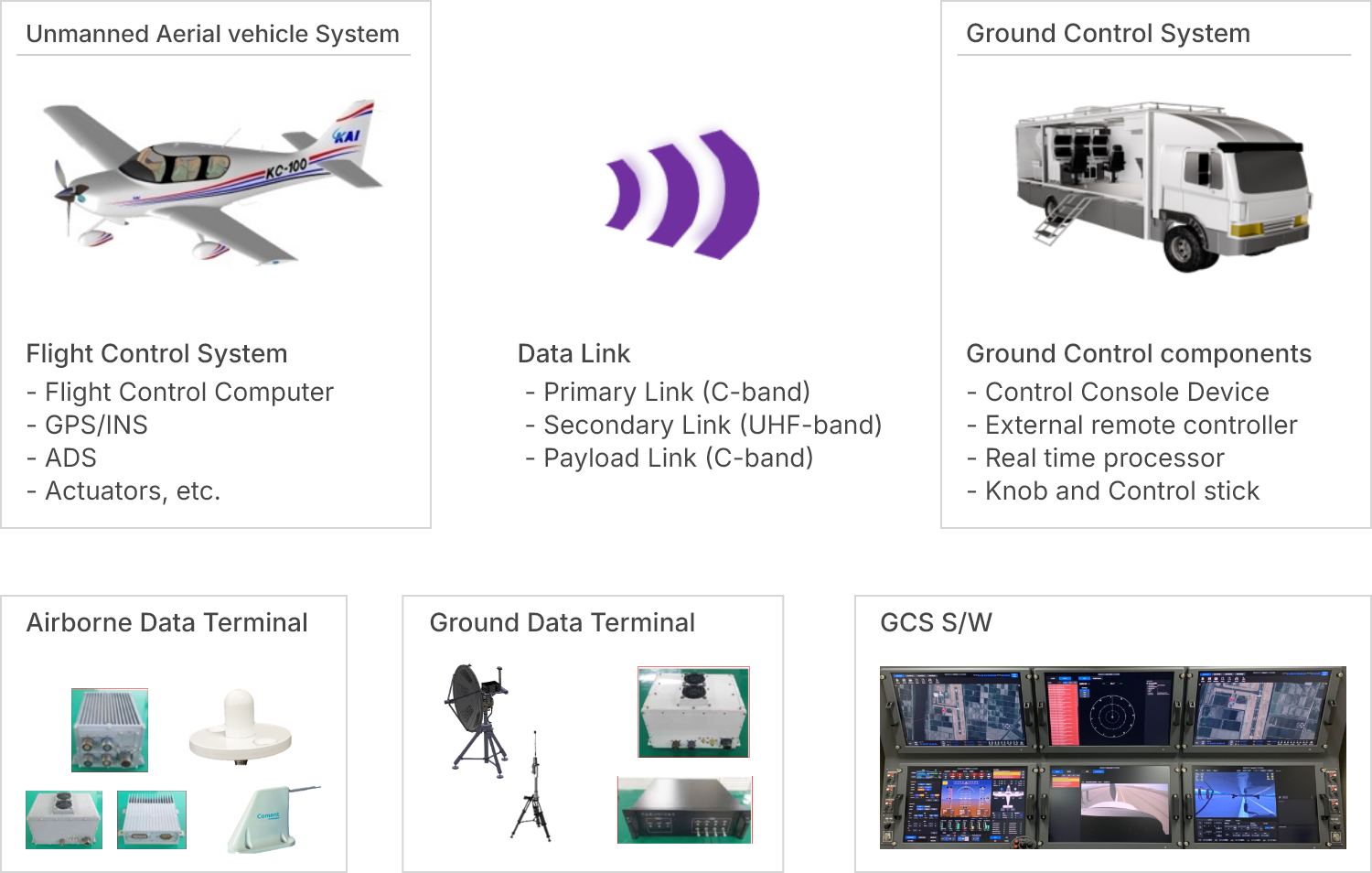

System configuration diagram

Diagram

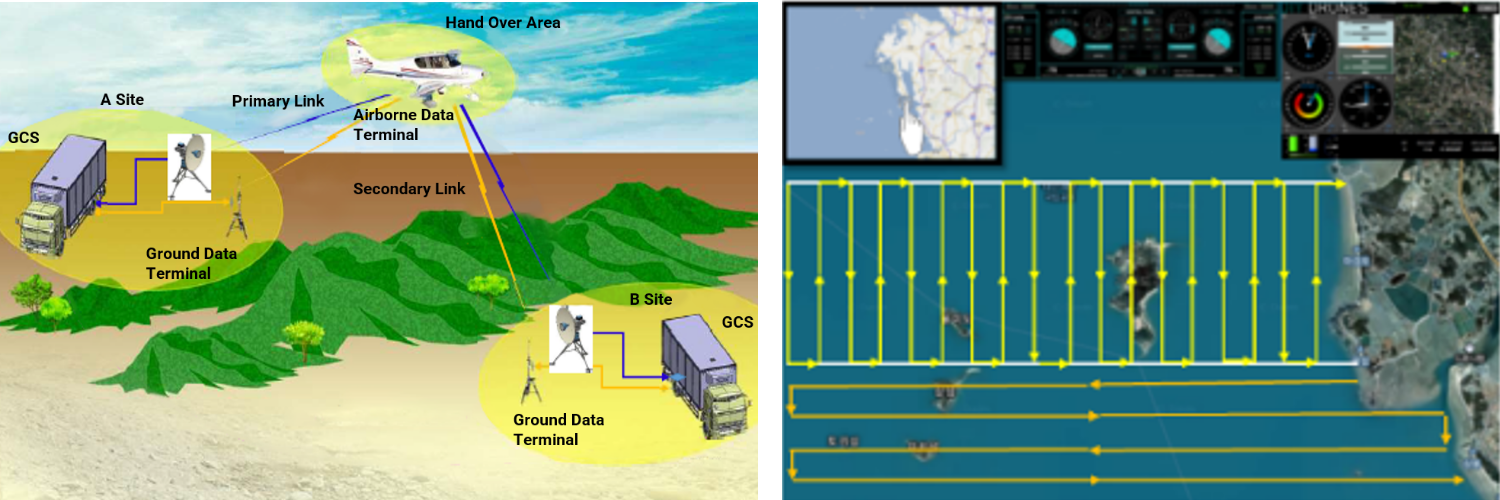

Equipment operation concept

Diagram
